Stereo Max

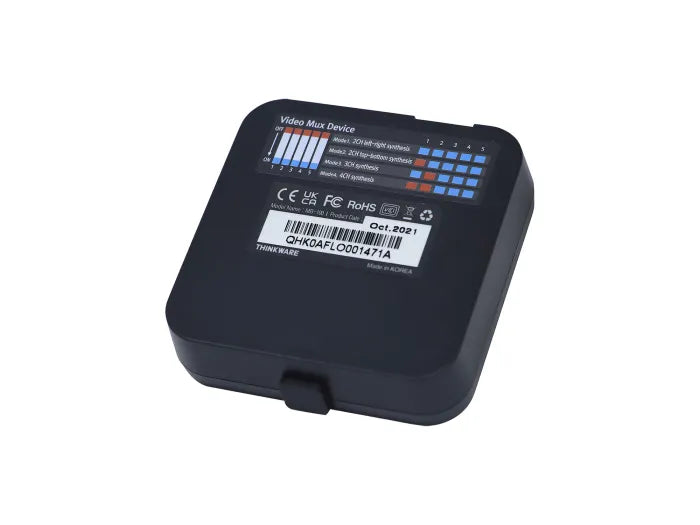

THINKWARE Multiplexer Box

Call for pricing

  • Key:
    piano code switch
    composite screen can be configured according to switch combination
  • Power Source:
    2 (BAT, GND)
    DC 12 V ~ 24 V
    Cable length: 3 m
  • AV-IN (For optional camera connection):
    4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
    2.5 pi Stereo-jack type
    AFHD
    Cable length to connecting connector: 15 cm
  • AV-OUT(For front camera connection):
    1 cable (AV-OUT)
    2.5 pi Stereo-jack type
    For front camera connection
    Cable length: 3 m
  • Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
  • Composite Video: Full HD (1920 x 1080)  @ 30fps
  • Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
  • Weight: 40.0 g (1.41 oz)
  • Storage Temperature:   -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature:   -10°~ 60°C (14°~ 140°F)
Stereo Max

THINKWARE Multiplexer Box

$0.00
  • Key:
    piano code switch
    composite screen can be configured according to switch combination
  • Power Source:
    2 (BAT, GND)
    DC 12 V ~ 24 V
    Cable length: 3 m
  • AV-IN (For optional camera connection):
    4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
    2.5 pi Stereo-jack type
    AFHD
    Cable length to connecting connector: 15 cm
  • AV-OUT(For front camera connection):
    1 cable (AV-OUT)
    2.5 pi Stereo-jack type
    For front camera connection
    Cable length: 3 m
  • Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
  • Composite Video: Full HD (1920 x 1080)  @ 30fps
  • Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
  • Weight: 40.0 g (1.41 oz)
  • Storage Temperature:   -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature:   -10°~ 60°C (14°~ 140°F)
