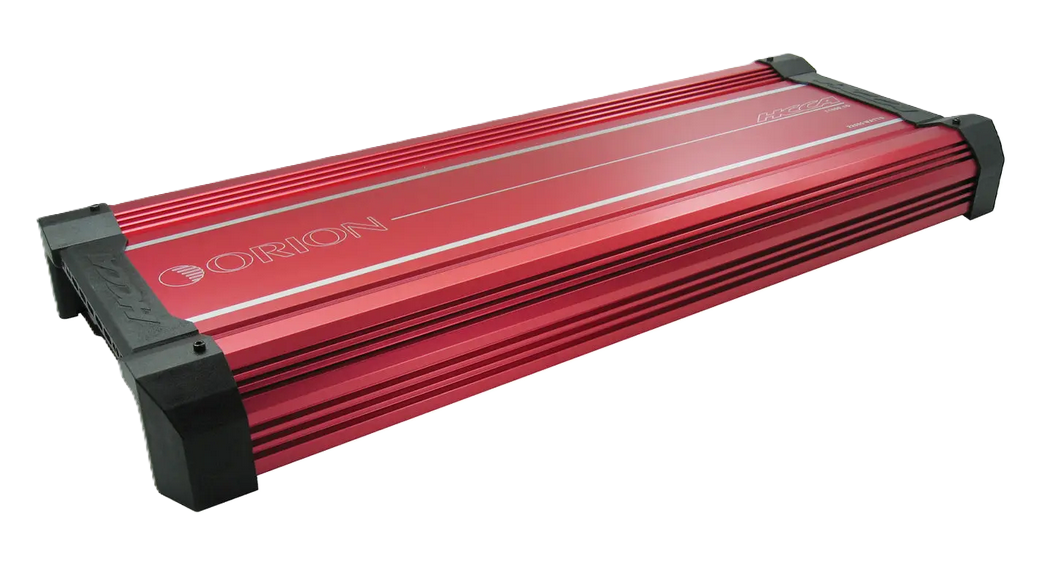

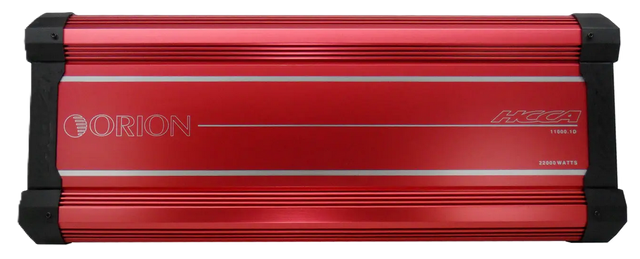

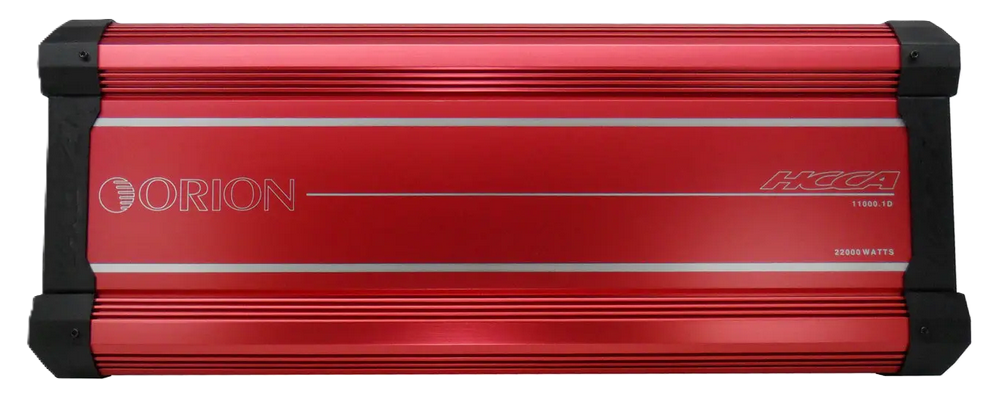

Orion HCCA12500.1DSPLX

Class D Amplification - Experience the pinnacle of efficiency and power with Class D amplification, delivering unmatched and precise sound reproduction.
12500 Watts RMS - Immerse yourself in a world of monumental audio power with 12500 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

- RMS Power @ 4 Ohms @ 0.5% THD+N: 4300W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 7500W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 12700W
- Linked with identical Amplifier
  RMS Power @ 2 Ohms @ 0.5% THD+N: 25400W

- Frequency Response: 15Hz - 250Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 1100A recommended (not included)
- Dimensions (L x W x H): 33.85" x 11.89" x 3.15" (860x302x80mm)
