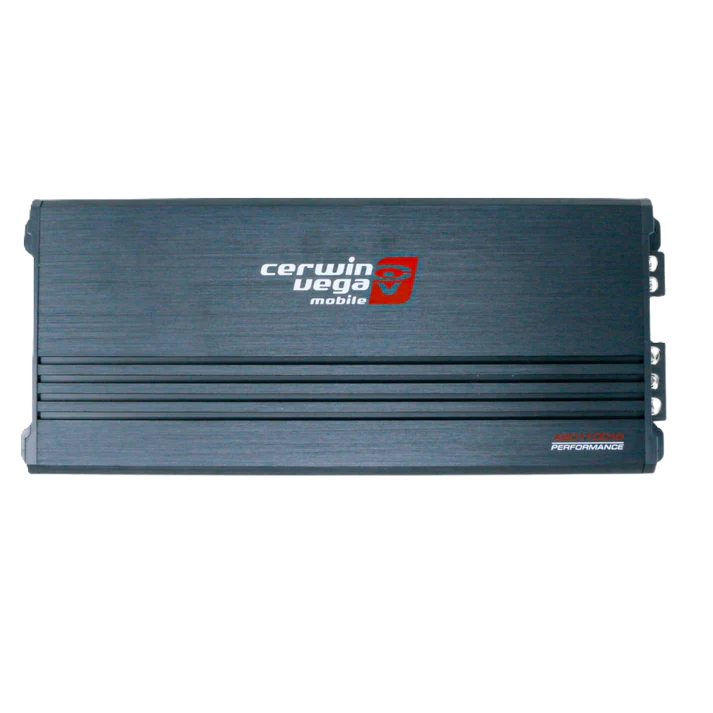

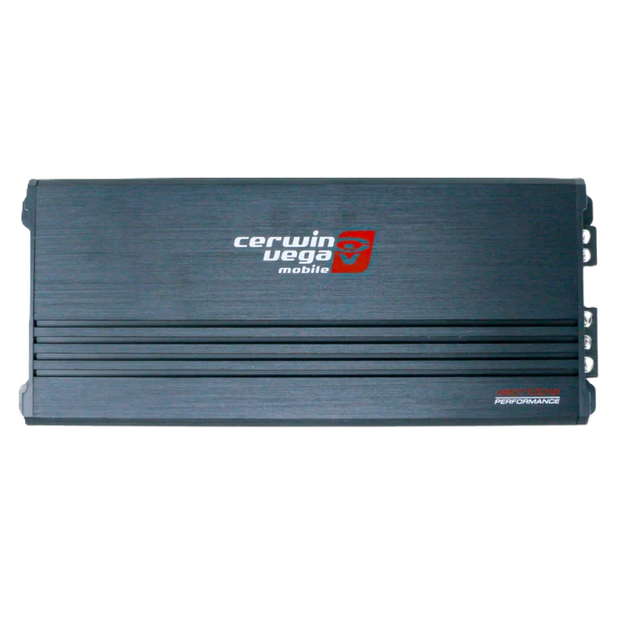

CERWIN VEGA XED11001D

POWER RATING

• RMS Power @ 2Ω: 1100W
• RMS Power @ 4Ω): 650W

POWER SUPPLY

• Power Supply: Full PWM
• Power Supply Threshold: 10.0V-16.0V (DC)
• Idle Current: (0.7A)

DISTORTION

• THD 4 (100Hz @4Ω): <0.1%
• S/N Ratio (A weighted @1W): -85dBA
• S/N Ratio (A weighted @FP): -101.1dBA

INPUT SENSITIVITY

• Low Input Level: 250mV-6V
• High Input Level: 1.1V~>20.0V

INPUT IMPEDANCE

• Low Input Level: 20KΩ
• High Input Level: 100Ω

OUTPUT STAGE

• Output Impedance: 2Ω
• Damping Factor (50Hz @ 4Ω): >70
• Bandwidth (-3dB): 10Hz-250Hz

CROSSOVER (-12dB/Oct)

• Variable High-Pass:
• Variable Low-Pass: 35Hz-250Hz
• Variable Sub-Sonic: 10Hz-50Hz

FUSE RATINGS

• ATC: 35A x 3 (Inside)

DIMENSIONS

• L x W x H: 11”x 4.7”x 1.8” (280mm x 120mm x 46.5mm)

FEATURES

• Bass Boost: 0dB-12dB
• LED Power/Protect Light Indicator
• Bass Control Included
• MFR #: XED11001D
